AVMH8

Name: AVMH8
Brand: SimiDrive IOT | Safe Driving Solution Provider
SKU: H8
Availability: InStock
Rating: 5 (1 reviews)

No.H8

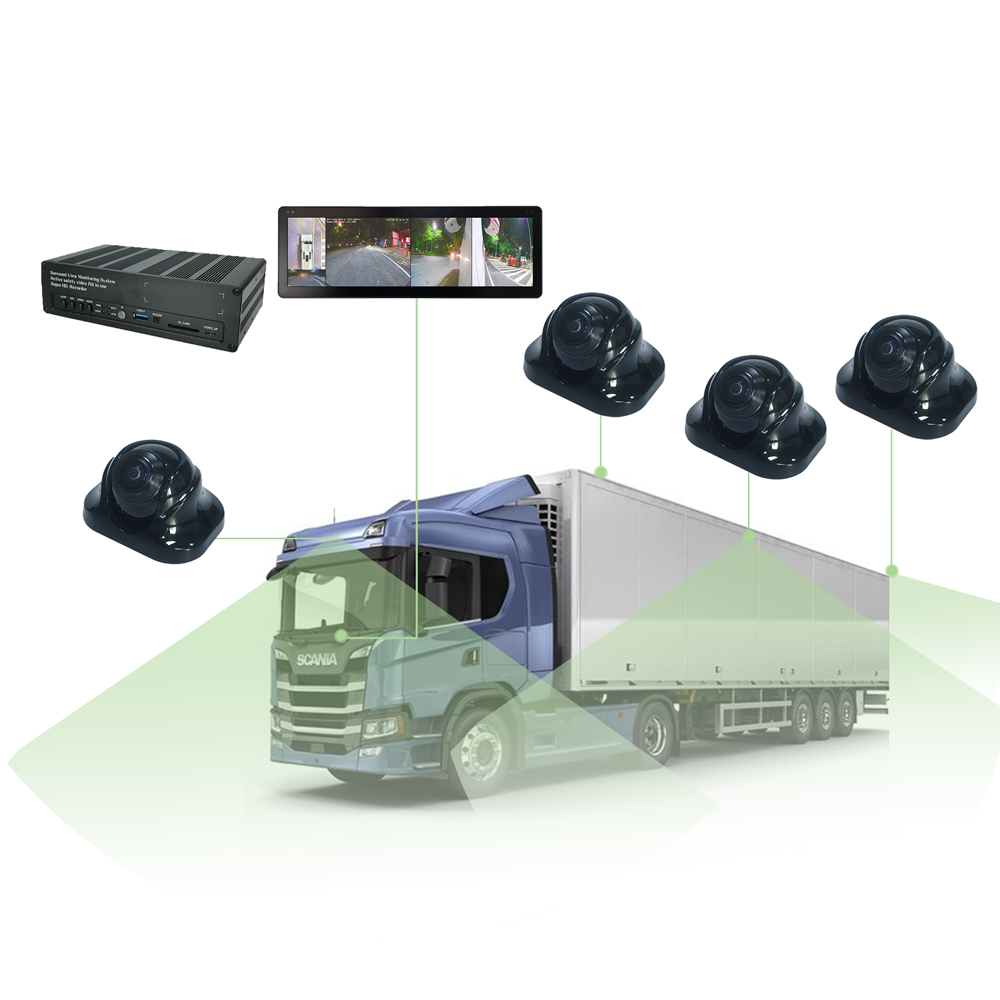

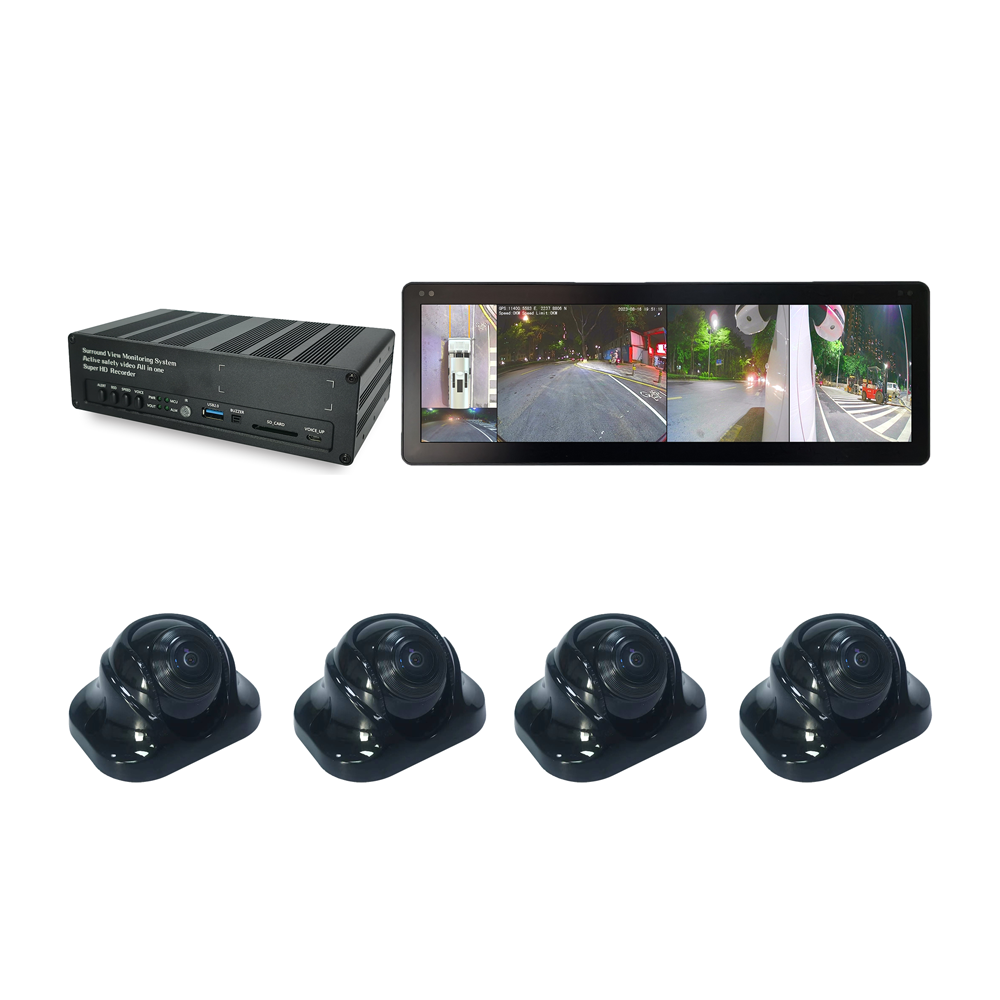

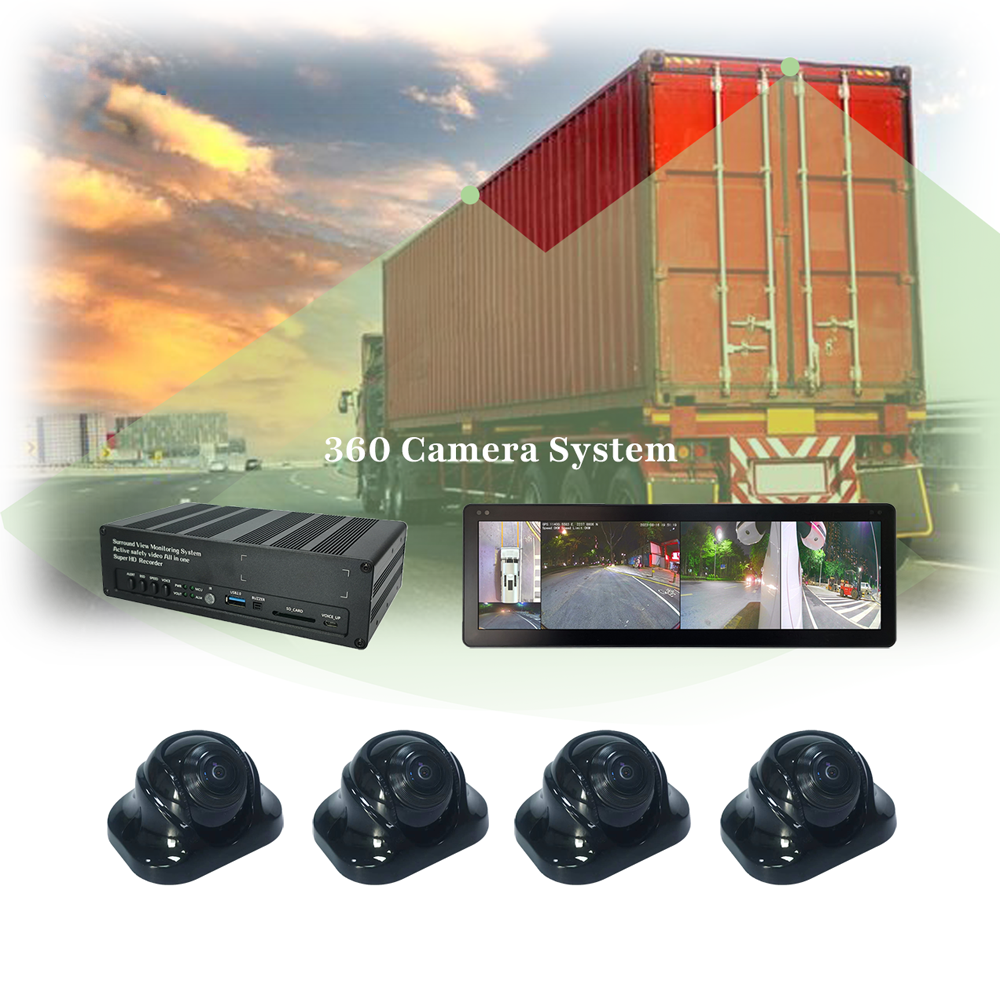

The H8 is a 360-degree panoramic imaging + active safety driving assistance system developed specifically for large vehicles' blind spots. It integrates AI-powered blind spot detection, CAN communication, speed sensors, 16 radar probes, exterior auditory/visual alarms, interior blind spot indicator lights, and voice prompts. The system achieves panoramic imaging (360°), Blind Spot Detection (BSD), and Lane Change Assist (LCA) functions, creating a comprehensive active driving safety solution for large vehicles.

1. Wide Voltage Design with Anti-Misplug Interface
2. Multiple Video Input/Output Interfaces
3. Optional Ultrasonic Radar Compatibility
4. HD Display Screen
5. Supports SD and SSD Storage
6. Buzzer and Audible/Visual Alarm System

GET A QUOTE

Technical Specifications

Power Consumption

Less than 1W

Operating Voltage

DC 12V-24V

Surge Protection

600W TVS diode

Accuracy

±1CM

Waterproof Rating

IP67

operating temperature

-40~80°C

Dimensions

166×100×45.6mm

More Details

Blind Spot Challenges for Heavy Goods Vehicles(HGVs))

Blind spots lead to a high incidence of reversing accidents in HGVs

Due to their long bodies and wide wheelbases, Heavy Goods Vehicles (HGVs) create large blind spots at the rear, sides, and under the front of the vehicle during reversing, making it difficult for drivers to detect low-lying obstacles (such as traffic cones and pedestrians) or adjacent vehicles using mirrors alone.

Reversing in tight spaces is highly challenging for HGVs

When reversing in confined areas such as loading/unloading zones and logistics warehouses, HGVs require frequent steering adjustments. Traditional reliance on manual visual estimation or single rearview cameras is prone to distance misjudgment, resulting in scratches or collisions.

Low-light environments / Extreme weather conditions

Rain, snow, or foggy conditions impair camera imaging, while rearview mirrors become ineffective at night or under glare from bright lights. Traditional reversing systems see their reliability plummet in harsh environments. By adopting ultrasonic detection technology, which remains completely unaffected by lighting, rain, or fog, stable operation is ensured.

Product Description

High-Precision Ultrasonic Sensor

With a 0.25-second rapid response, 0.1m precision, and a 60-degree detection angle, an array of multiple sensors can comprehensively cover all potential collision risks around the vehicle.

Audible and Visual Alerts

When reversing or turning, drivers can monitor the distance between the vehicle and obstacles via a display screen. As the distance decreases, audible alerts become increasingly frequent.

Support Camera

The system kit can be optionally equipped with a camera module, supporting 4-6 high-definition cameras installed across multiple channels to work in coordinated operation

Waterproof

Waterproof: Protected against submersion IP67， Dustproof: Fully sealed to block fine particles. Corrosion-resistant: Anti-rust coatings and materials for saltwater/chemical exposure.
