​​12.3-inch TFT-LCD electronic rearview mirror

No.TF1233-02AHD-1

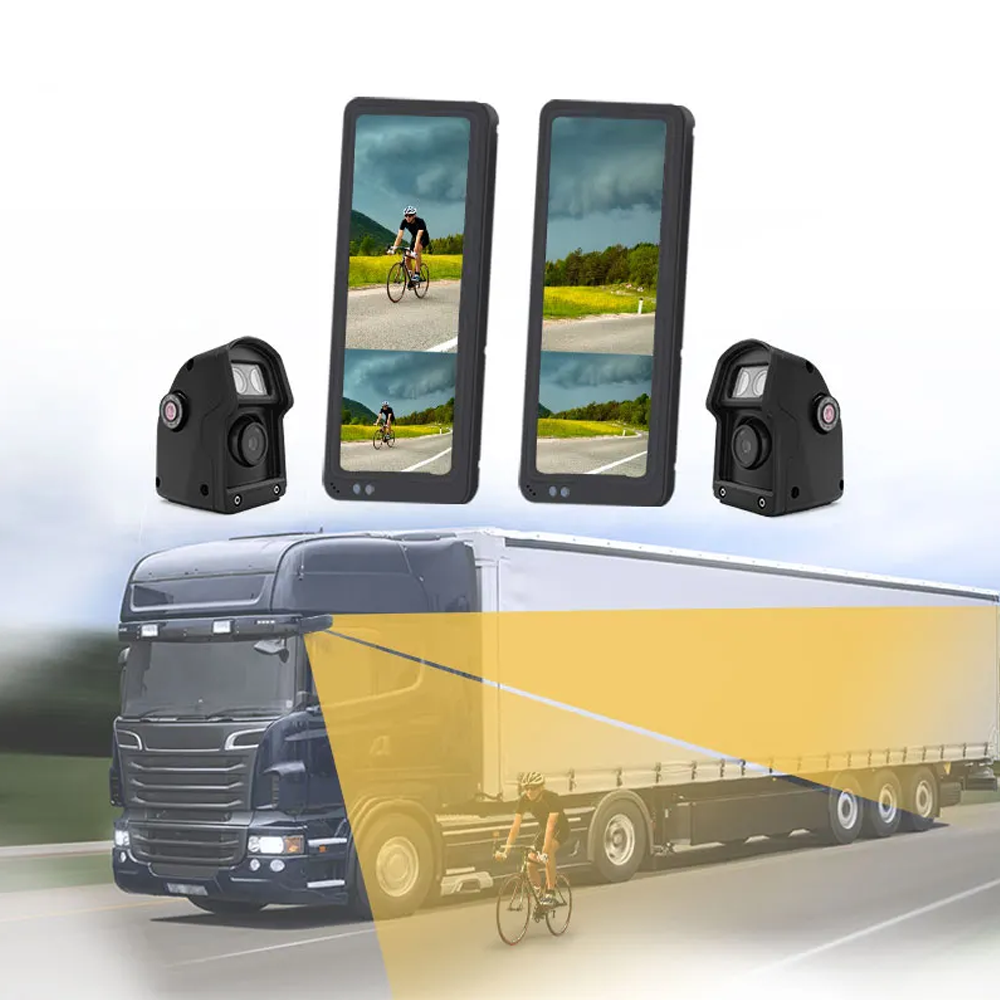

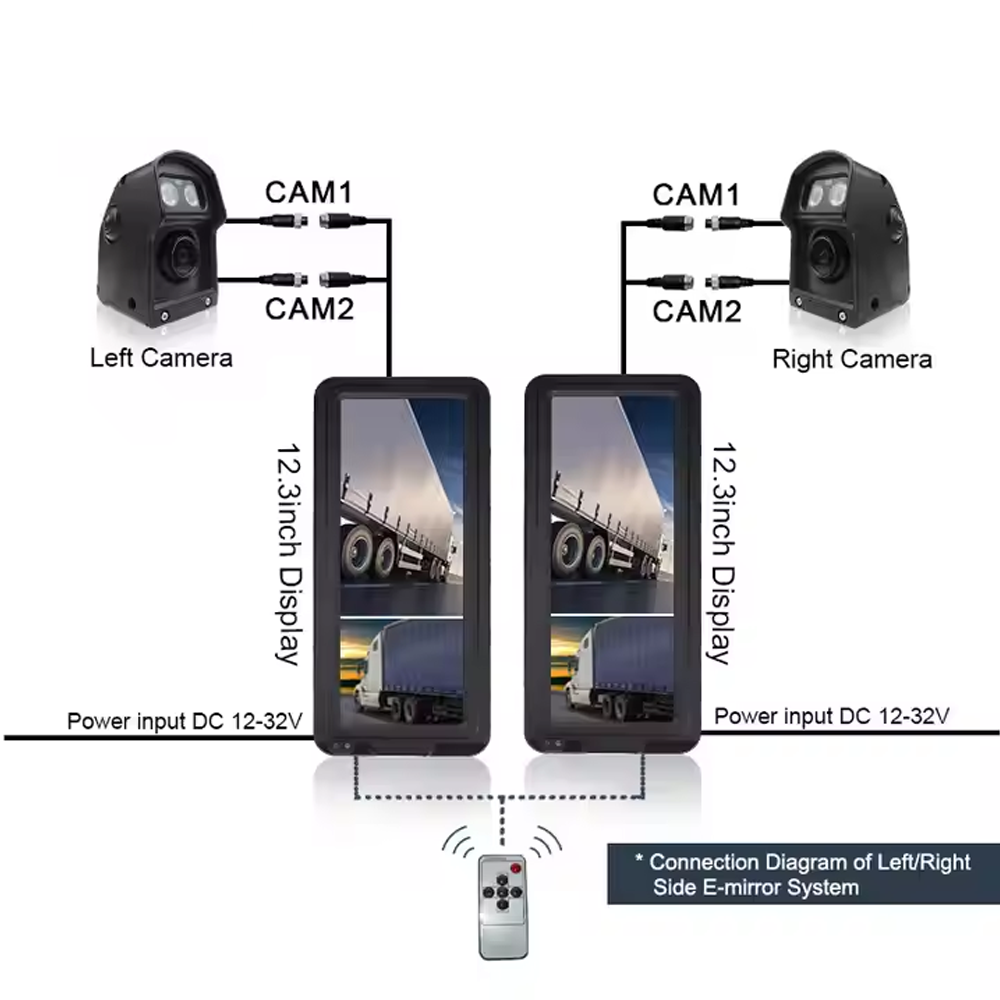

12.3inch E-Side Mirror System is designed for replacing traditional rearview mirror. The system collectes image from dual lenscamera mounted left/right side of the vehicle, and inputs the image signal of the road conditions to the 12.3 inch screen fixed on the A-pillar inside the vehicle, and then display on the screen.

 * WDR for capturing clear and balanced images/videos
 * Class II and Class IV view to increase driver visibility
 * Hydrophilic coating to repel water droplets
 * Glare reduction to lower eye strain
 * Automatic heating system to prevent icing (for option, PLEASE contact us)
 * BSD system for road users detection (for option, PLEASE contact us)

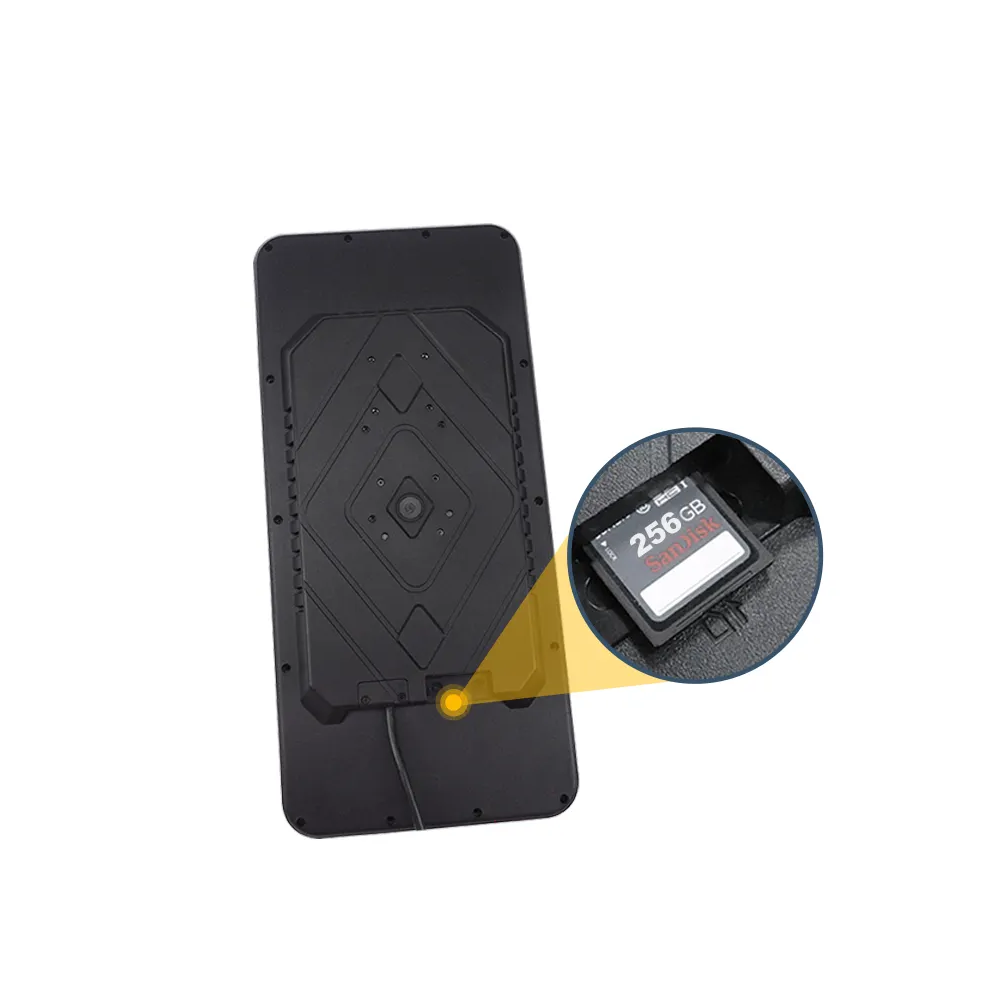

 * Support SD card storage (max. 256GB) (for option, PLEASE contact us)
  • ​​12.3-inch TFT-LCD electronic rearview mirror
  • ​​12.3-inch TFT-LCD electronic rearview mirror
  • ​​12.3-inch TFT-LCD electronic rearview mirror
  • ​​12.3-inch TFT-LCD electronic rearview mirror
  • ​​12.3-inch TFT-LCD electronic rearview mirror
  • ​​12.3-inch TFT-LCD electronic rearview mirror

Technical Specifications

Power Consumption

MAX 24W

Operating Voltage

DC 12V-36V

Screnn Size

12.3inch

Resolutionn

1920X3(RGB)X 720 Pixel

Video Input

AHD 720P/1080P/CVBS

operating temperature

-30-70°C

Dimensions​​

343mm*160mm*67.5mm (with bracket)

Product Description

1080P HD Display

1080P HD Display

high-definition monitor showing real-time traffic footage, alongside icons highlighting its features including 1080p resolution, anti-glare technology, WDR, polarized lens, hydrophilic coating, mirror image mode, intelligent heating, and full-color night vision.

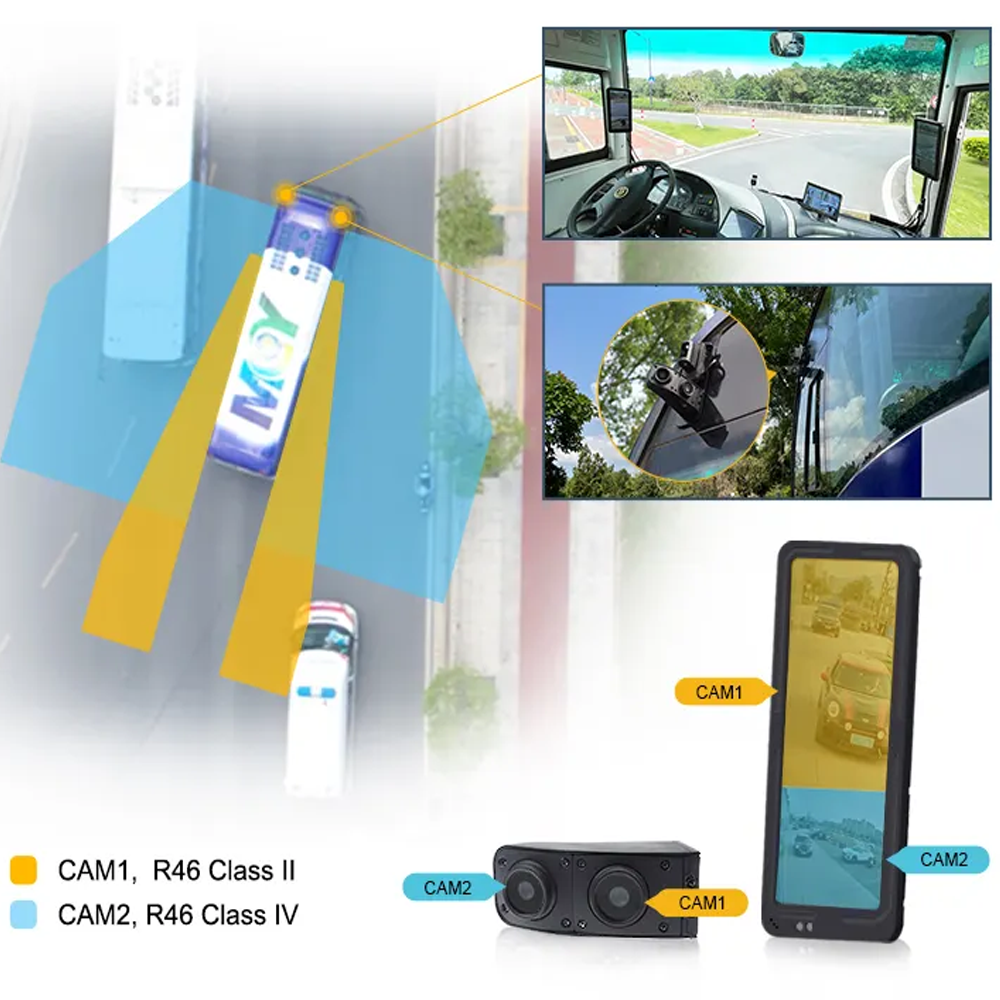

​Class II and Class IV fields of view​

​Class II and Class IV fields of view​

A dual - lens module can provide Class II and Class IV fields of view for drivers, reducing blind spots.
Good Visibility

Good Visibility

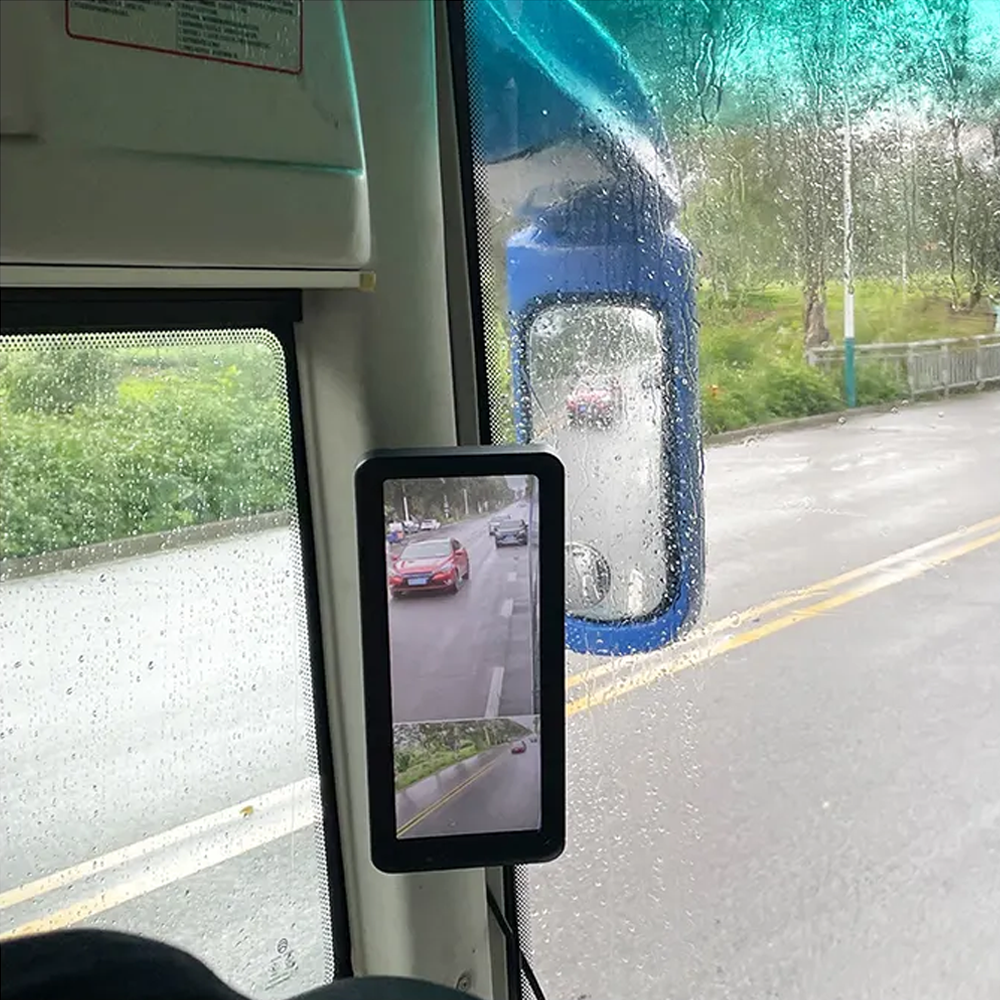

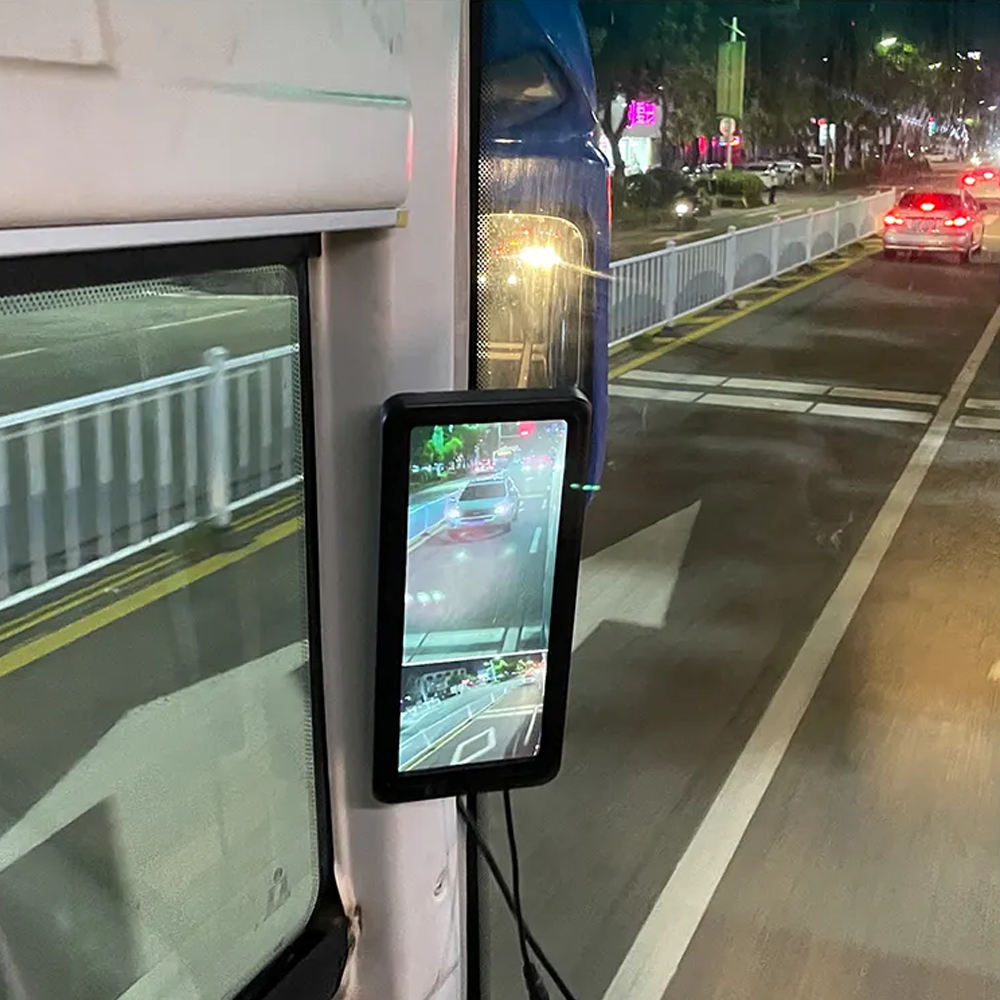

Electronic side - view mirrors can provide a clear field of vision both on rainy days and in the dark at night.Electronic side-view mirrors offer a clear field of vision, both on rainy days and at night.
Waterproof

Waterproof

Waterproof: Protected against submersion IP67, Dustproof: Fully sealed to block fine particles. Corrosion-resistant: Anti-rust coatings and materials for saltwater/chemical exposure.
